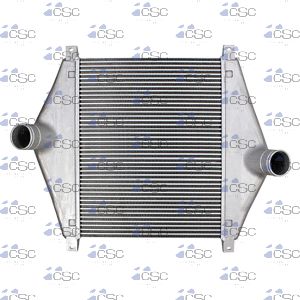

International / NaviStar

Fits:

2020 – Newer International Lonestar

Dimensions:

23 7/8” x 30 1/8” x 2 1/2”

Inlet 4"

Outlet 4"

615CA001

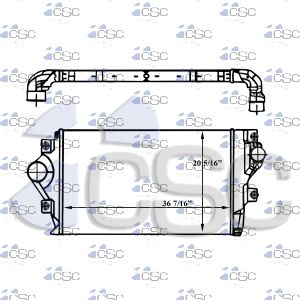

International / Navistar Charge Air Cooler

Fits

2010-2013 NAVISTAR TRANS STAR

Dimensions

36 7/16" X 20 5/16" X 2"

Inlet 3 (right)

Outlet: 4 (left)

615CA0394

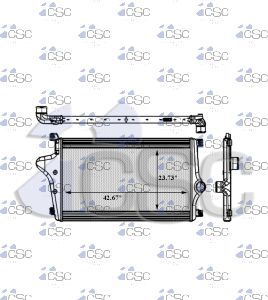

INTERNATIONAL WORKSTAR CAC MODULE

CORE DIMENSIONS:

42.67" X 23.73" X 2"

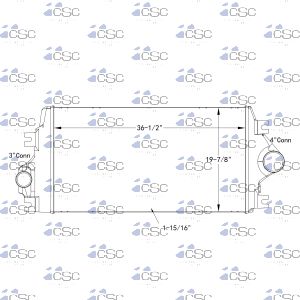

Fits:

International/Navistar:

2010-2017: Prostar

Core Dimensions:

36 1/2" x 19 7/8” x 1 15/16”

Header Size:

Inlet: 2 7/16” x 20 3/8”

Outlet: 2 7/16” x 20 3/8”

Hose Connections:

Inlet: 4”

Outlet: 3”

Notes:

14 /16” centers on right side mounting holes

12 1/2” centers on left side mounting holes

615CA0404

International Navistar Charge Air Cooler

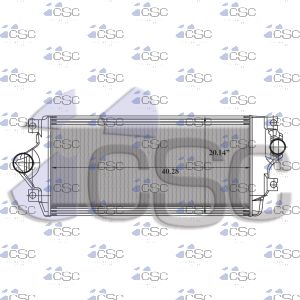

Fits

2010-2015 Navistar 5500-5600

Core Dimensions

40.28" X 20 14" X 2.0"

615CA042

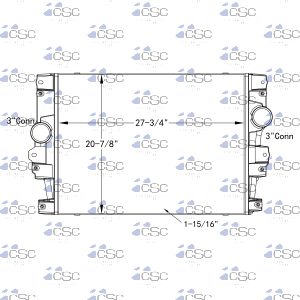

Fits:

International / Navistar:
2019-Newer CV 6.6L engine

Chevrolet / GMC:
2019-2021 4500 HD 6.6L engine
2019-2022 5500 HD, 6500 HD
6.6L engine

Dimensions:

27 3/4" x 20 7/8" x 1 15/16"

Inlet 3

Outlet: 3

615CA087

International Blue Bird Bus Charge Air Cooler

Fits

9670, 9700 Cabovers with Cummins N14, CAT L10, 3406, 3406E, 3176 Engine

1991 - 1993 Conventional Cab

Core Dimensions

27 5/8” x 19 5/8" x 2 3/4"

Inlet: 4"

Outlet: 4"

615CA130

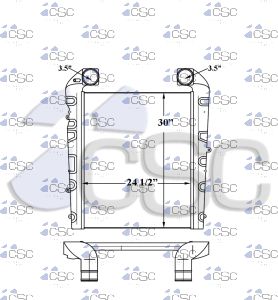

Fits:

International/Navistar 4200, 4300, 4500 - 4900 Series

S-Line, Spartan Fire, Bluebird, Carpenter, GMC, and Tor Trucks

Core Dimensions:

23 1/2” x 29 3/4" x 1 1/2"

Inlet: 3 1/2"

Outlet: 3 1/2"

615CA131

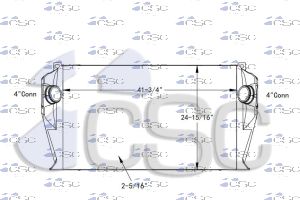

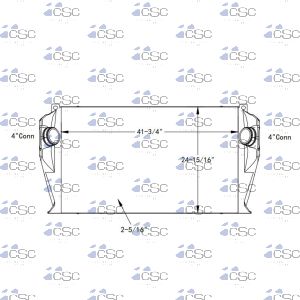

Core measurements:

41 3/4” x 24 15/16” x 2 5/16”

Intet: 4”

Outlet: 4”

Notes: Bar & Plate construction, for Tube & Fin construction use 615CA134

615CA134-BP

Fits:

INTERNATIONAL/NAVISTAR:

2003-2007: Workstar, 7600-7700

Core Dimensions:

40 9/16” x 24 9/16” x 1 15/16”

Hose Connections:

Inlet: 3 15/16” Flanged

Outlet: 3 15/16” Flanged

615CA134A

Fits:

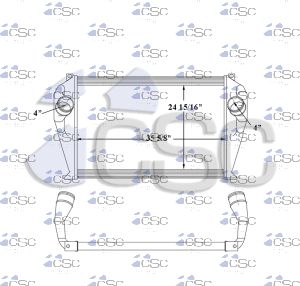

1991 - 2002 International 8100 Series

Core Dimensions:

35 5/8” X  24 15/16" X 2 13/16"

Inlet: 4"

Outlet: 4"

615CA134B

Fits:

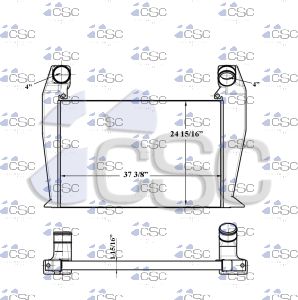

1996 NV 9300 Series  9370 - 9600 Series

Core Dimensions:

37 3/8” x 24 15/16" x 1 15/16"

Inlet: 4"

Outlet: 4"

615CA134C

Fits:

2002-2007 International 7000,7300SBA,7400,7500,7600,7700 Series

Core Dimensions:

41" X 24 5/8" X 1 3/4"

Inlet: 3 1/2"

Outlet: 4"

crossflow

615CA134E

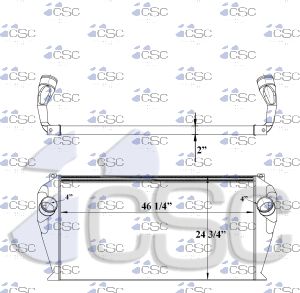

Fits:

International / Navistar 5500i 5600i 5900i 7500

Core Dimensions:

46 1/4" X 24 3/4" X 2"

Inlet: 4"

Outlet: 4"

615CA134EX

Fits:

1995-2003 International 1652 Stripped Chassis

1996-2004 International 3800 Bus Half Core T444E Engine

1994-2002 International 4700 Half Core

Core Dimensions:

22 7/8" X 13 1/16" X 2 13/16"

Inlet: 3"

Outlet: 3"

615CA136B

Fits:

3000/4000 Series G & S Line

Half Core Cooler

* If driver side connection is curved at 30 degree angle use 615CA136C

Core Dimensions:

23 1/2” X  12 3/8"X 2 3/4"

Inlet: 3 1/8"

Outlet: 3 1/8"

615CA136M

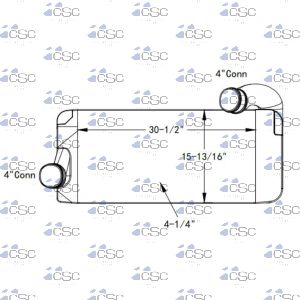

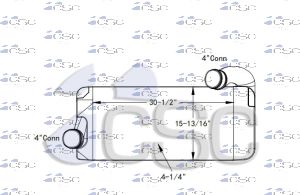

Core measurements:

30 ½” x 15 13/16” x 4 ¼”

Intet: 4”

Outlet: 4”

Notes: Bar & Plate construction

615CA137-BP

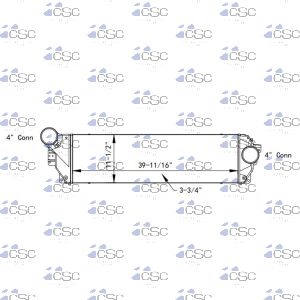

Core Dimensions:

39 11/16” x 11 1/2” x 3 3/4”

Inlet: 4"

Outlet: 4"

615CA137C

Outlet : 3 1/4"

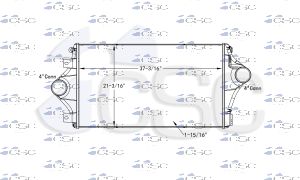

Fits:

International / Navistar:
2017 – Present LT Series
2017 – Present RH Series
2020 – 2022 HX Series X15 & A26

Core Dimensions:

37-3/16 x 21-3/16 x 1-15/16

Inlet: 4"

Outlet: 4"

615CA139

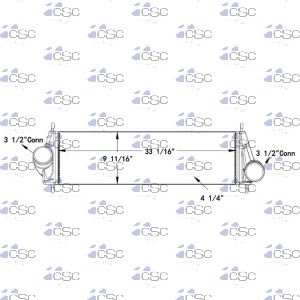

Core Dimensions:

32 11/16” X 9 5/8” X 4 ¼”

3 ½”

3 ½”

615CA284

Fits:

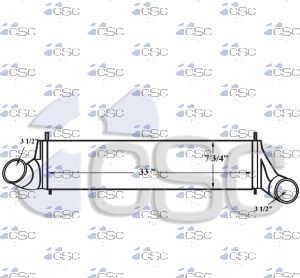

2014 & NEWER INT'L DURASTAR WITH 33" CORE LENGTH

Core Dimensions:

33" X 7 3/4" X 4 1/4"

Inlet: 3 1/2"

Outlet: 3 1/2"

615CA309

Fits

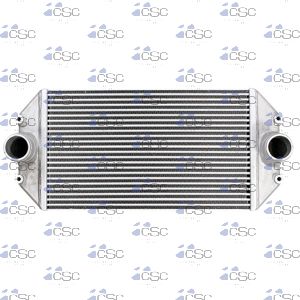

2013-Newer International Rear Engine Bus

Dimensions

23 3/4" X 14" X 4 1/4"

Inlet 3

Outlet: 3

615CA396

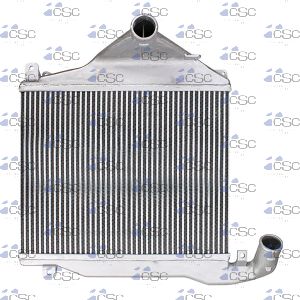

Fits

2008 - Newer International / Navistar Workstar Models

Dimensions:

22 3/8" X 28 3/4" X 2"

Inlet 3"

Outlet: 3"

615CA397

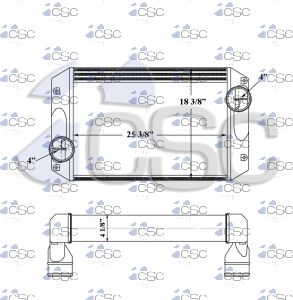

Fits:

2004-09 International 5500i-5600i-5900i

Core Dimensions:

25 3/8" x 18 3/8" x 2 1/8"

Inlet: 4"

Outlet: 4"

615CA420

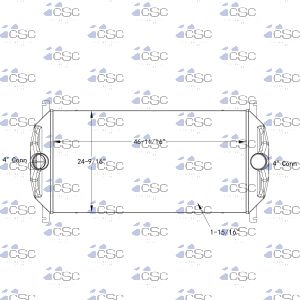

Dimensions::

46 11/16” x 24 9/16” x 1 15/16”

Inlet 4"

Outlet 4"

Note: Use 615CA429Kit that comes with sponge strips and Kit.

615CA429

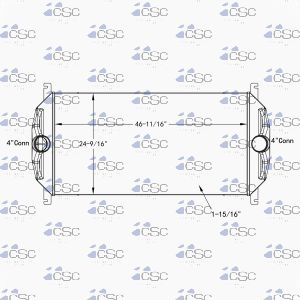

Dimensions::

46 11/16” x 24 9/16” x 1 15/16”

Inlet 4"

Outlet 4"

NOTES: Same as 615CA429 except comes with sponge strips and Kit.

615CA429KIT

Fits:

2014 & NEWER DURASTAR 4400 WITH 37 3/4

Core Dimensions:

37 11/16" X 9 5/8" X 4 1/4"

Inlet: 3 1/2"

Outlet: 3 1/2"

615CA435

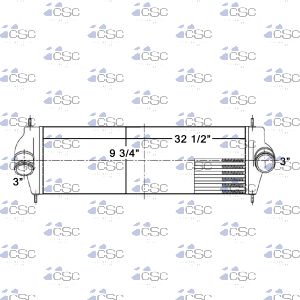

Core Dimensions:

32 ¾” X 9 ¾” X 4 ¼”

3”

3”

615CA436

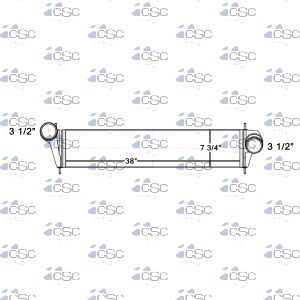

Fits:

2013 & NEWER INT'L DURASTAR WITH 38" CORE LENGTH

Core Dimensions:

38” X 7 ¾” X 4 ¼”

3 ½”

3 ½”

615CA439

Fits:

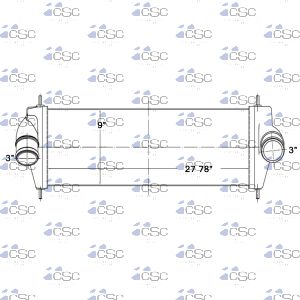

2003 & NEWER INT'L 3000

Core Dimensions:

27 7/8” X 9” X 3 9/16"

3”

3”

615CA440

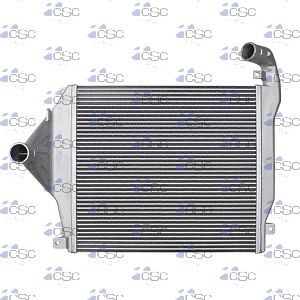

Fits:

2008 & Newer: International / Navistar Workstar Models

Core Dimensions:

30 3/8” X 28 3/4” X 2"

3”

3”

615CA443

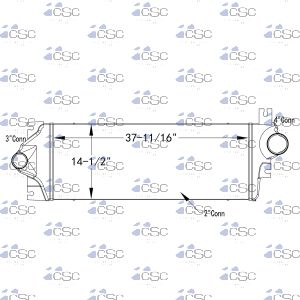

Fits:

2010 & Newer IHC/Navistar: Prostar, Workstar

Core Dimensions:

37 5/8" x 14 1/2" x 1 15/16"

Inlet: 3"

Outlet: 4"

615CA514

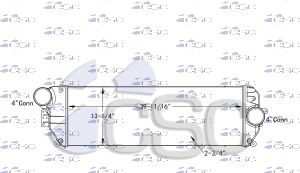

International/ Navistar  Charge Air Cooler

2007-2009 International Eagle 9100i-9200i-9400i-9900i

2008-2011: 8600, 9200, 9400

2007-2013: Prostar

39 5/8" X 13 5/8" X 4 1/4"

Inlet: 4"

Outlet: 4"

615CA965
