Caterpillar

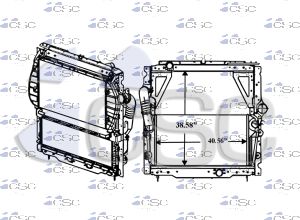

Caterpillar CT / Navistar Module

RAD/CAC/STRUCTURE

(WITHOUT OIL COOLER)

*If You Need Only Radiator Please see 604RA1C92

Core Dimensions

38.58" X 40.56"X 2.05"

604MD4F97

Core Dimensions:

38 1/2" X 40 7/16" X 2 1/16"

Inlet: 2 1/2"

Outlet: 2 1/2"

Trans. Oil Cooler: 11 1/2" (8 Plate) w/QC Fittings on Grill Side

Eng. Oil Cooler: NONE

604RA1C92

CORE DIMENSIONS:

28 15/16 x 40 7/16 x 2 1/16”

Inlet: 2 1/2"

Outlet: 2 1/2"

Trans Oil Cooler: 11-1/2” (8-Plate) w/Threaded Fittings

Eng. Oil Cooler: NONE

NOTE: Same as 615RA761STD except with TOC

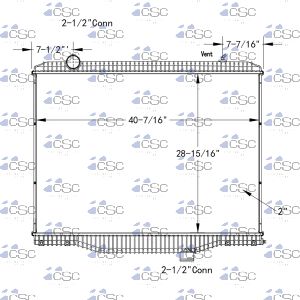

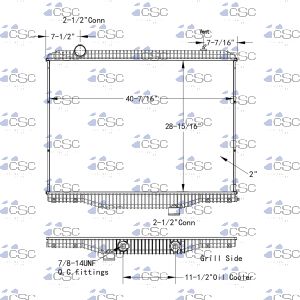

615RA761

CORE DIMENSIONS:

28 15/16 x 40 7/16 x 2 1/16”

Inlet: 2 1/2"

Outlet: 2 1/2"

Trans Oil Cooler: 11-1/2” (8-Plate) w/Threaded Fittings

Eng. Oil Cooler: NONE

NOTE: Same as 615RA761 except without TOC

615RA761STD
